Cellular Antenna Install
Cellular-enabled iTrackers require the antenna to be properly positioned to receive wireless signals. The provided Roadmarker antenna is a D.O.T. grade, omni-directional cellular antenna that can be installed above the manhole lid.
Equipment Needed:
• Combination rotary hammer drill
• Thru-hole drill bit for rotary hammer (5/8” x 24” or greater if required)
• Road reflector adhesives: Dalton Latex-ite (Available at Home Depot), Fastpatch or Quickdots
Installation:

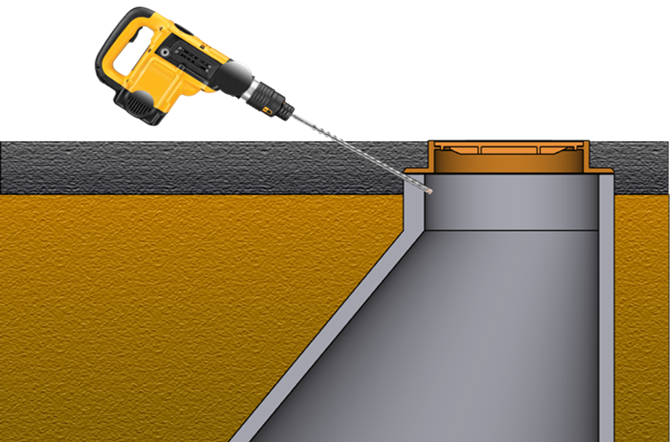

• Using the rotary hammer drill, drill an access hole from the street to a point beneath the manhole collar at approximately a 45-degree angle.

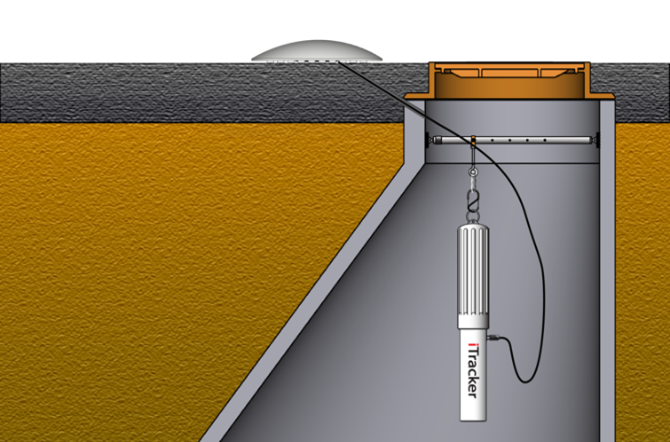

• Next, snake the antenna wire through the access hole.
• Use an appropriate road reflector adhesive to adhere the flat bottom of the antenna to the road.
• Place the antenna, so it completely covers the cable and hole.
